| Model No. | S1-210 | S1-210D | S1-210DM |

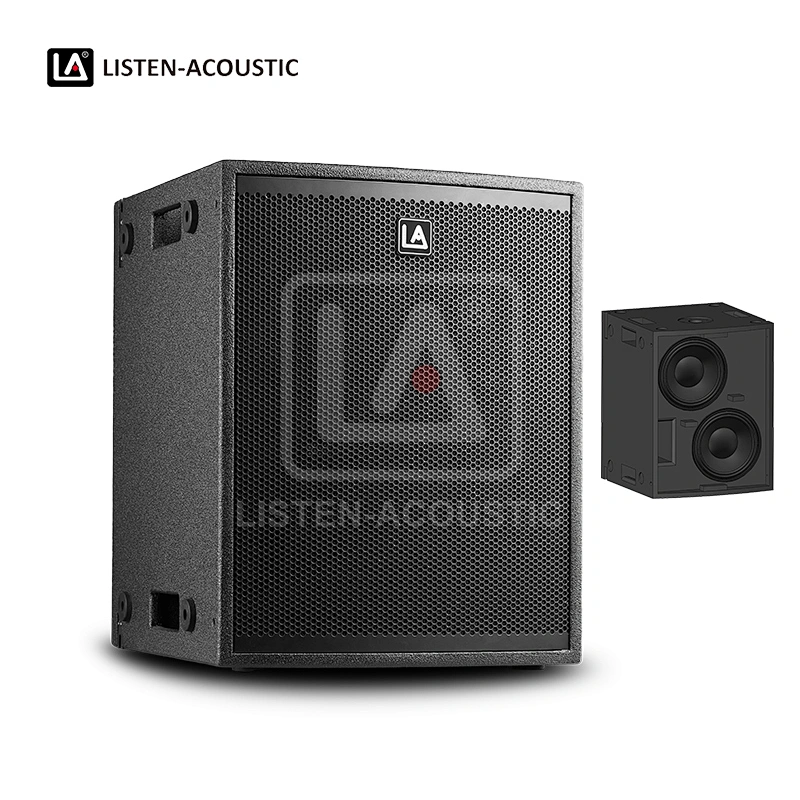

| Type | Dual 10'' passive bass reflex | Dual 10'' active bass reflex, Master Sub | Dual 10'' active bass reflex, Slave Sub |
| Frequency Response (-6dB) | 45 Hz - 120 Hz | ||
| Max. SPL (1m, free space) | 117 dB | ||
| Power Output (RMS) | 500W | ||
| Impedance | 8 Ohms | ||
| Transducer LF | 2*10"Subwoofer,2.5"voice coli | ||
| Amplifier | / | Class-D amplifier | |
| DSP Module | No DSP | LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display and USB for adjustment in computer | No DSP |
| Protection | / | Short circuit overheating,over-current | |

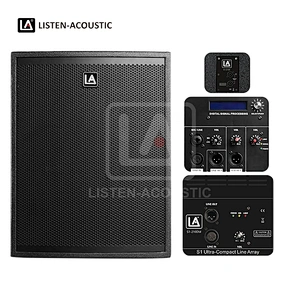

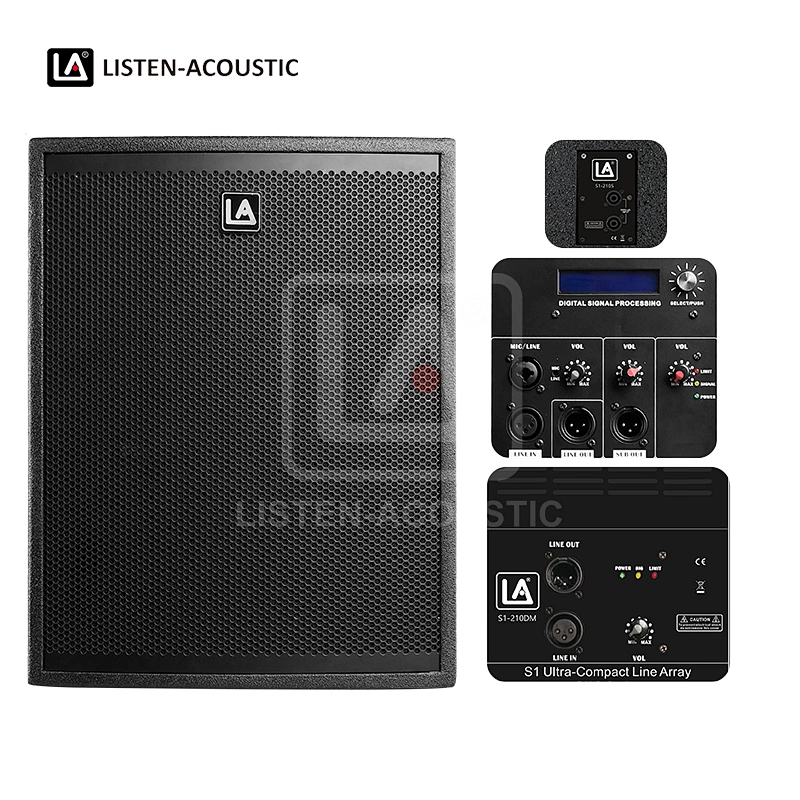

| Controls | / | Power On / Off switch, main level, mic/line level | Power On / Off switch, main level |
| Indicators | / | Power ,signal,limit | |
| Audio Input / Output | Speakon | 1 * Combo XLR/Jack input 1 * XLR input 1 * XLR output | 1 * XLR input 1 * XLR output |
| Power Input / Output | Speakon | Powercon | |
| Power Supply | 110~250V 50/60HZ | ||
| Enclosure | 15mm plywood with polyurea painting | ||
| Grille | 1.2mm thickness metal grille with acoustic fabric | ||
