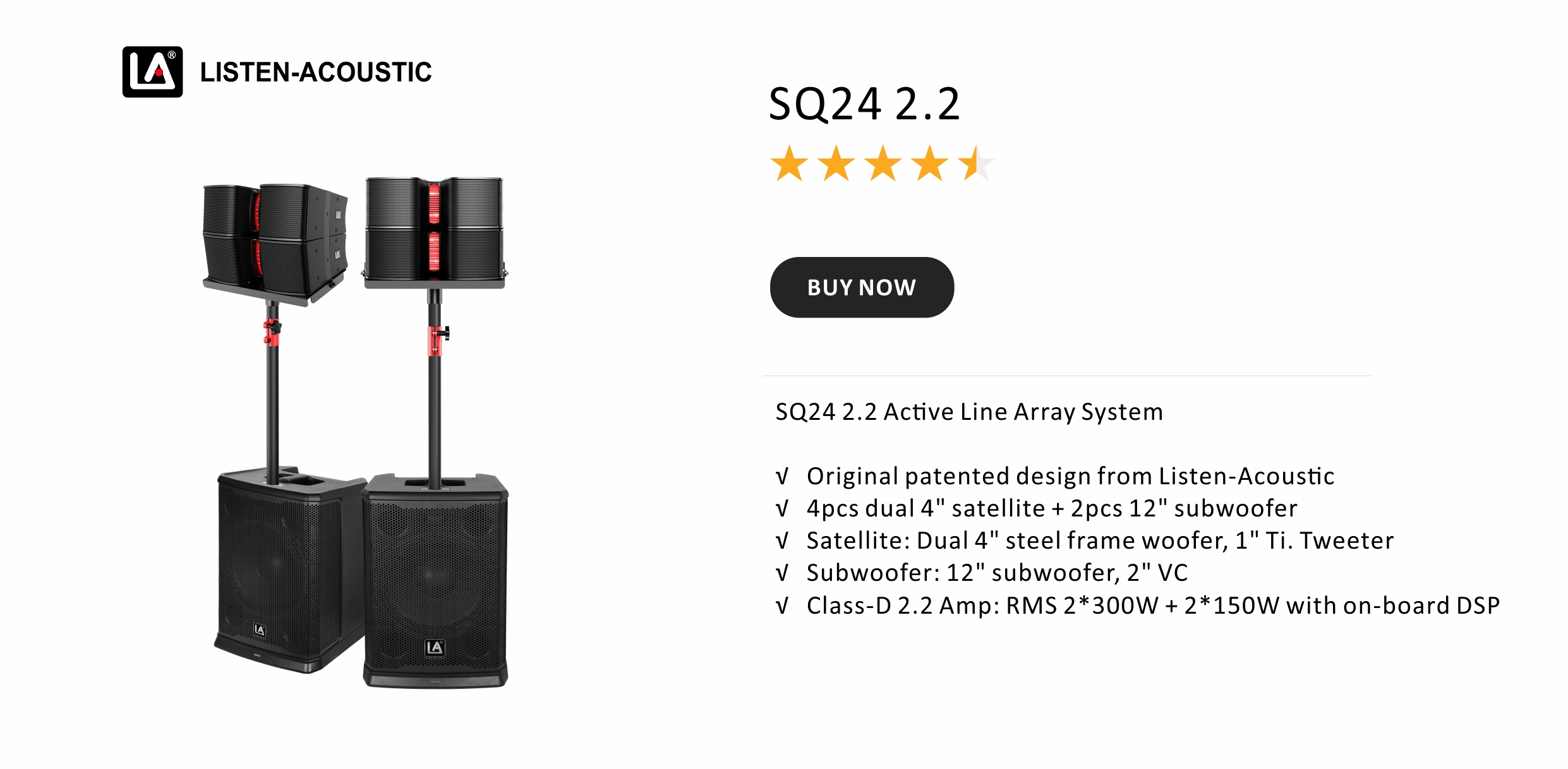

| Model No. | SQ24 2.2 | SQ24 2.2 PRO |
| Type | 2.2 compact line array(2 *12"subwoofer + 4pcs satellite) | 2.2 compact line array(2 *15"subwoofer + 8pcs satellite) |
| Frequency Response (-6dB) | 50 Hz -20 kHz | 40 Hz -20 kHz |
| Max. SPL(1m, free space) | 117 dB | 119 dB |
| Transducer HF | 1"Ti. Tweeter | 1"Ti. Tweeter |

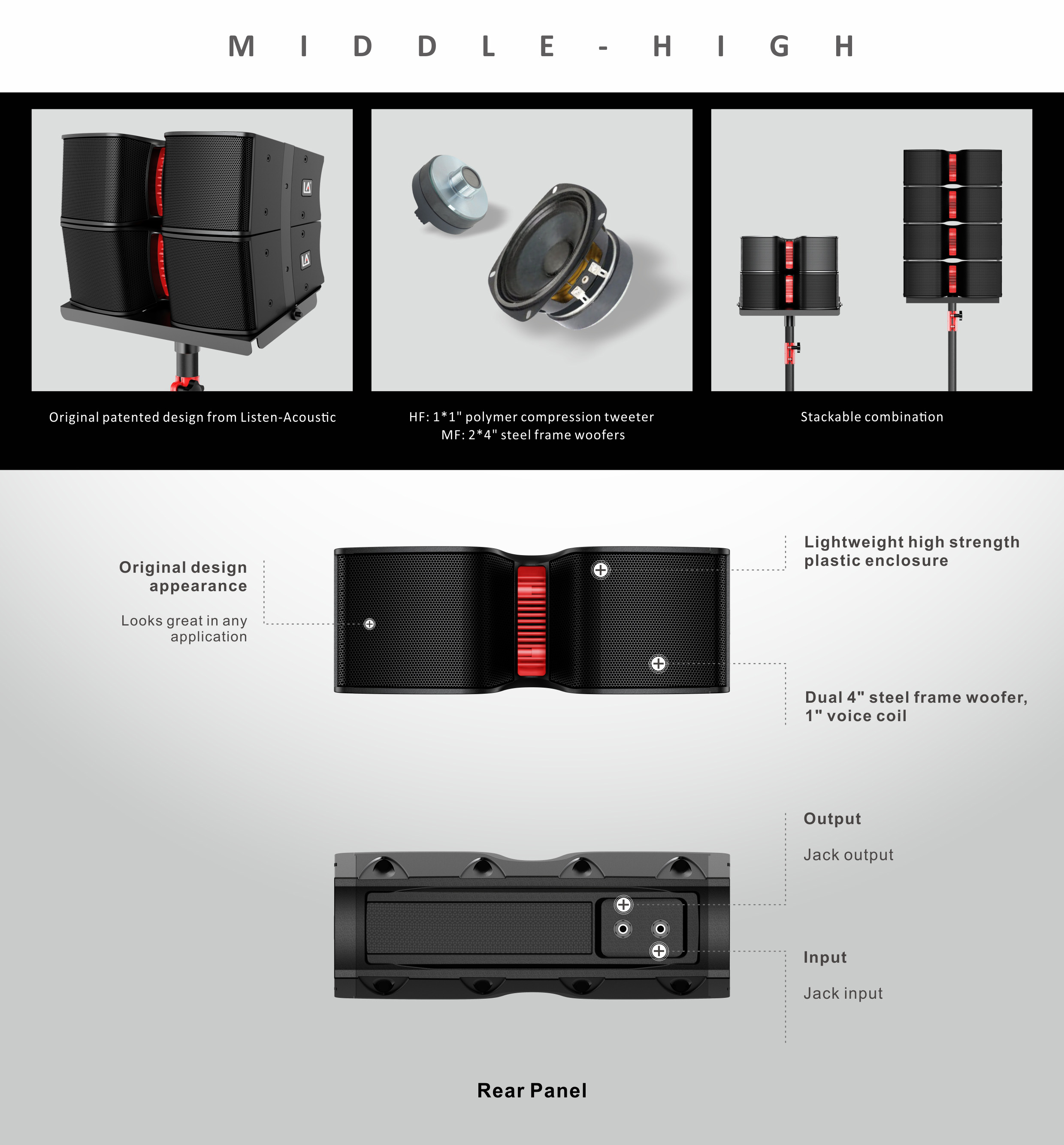

| Transducer MF | 2 *4"steel frame woofer, 1"voice coil | 2 *4"steel frame woofer, 1"voice coil |

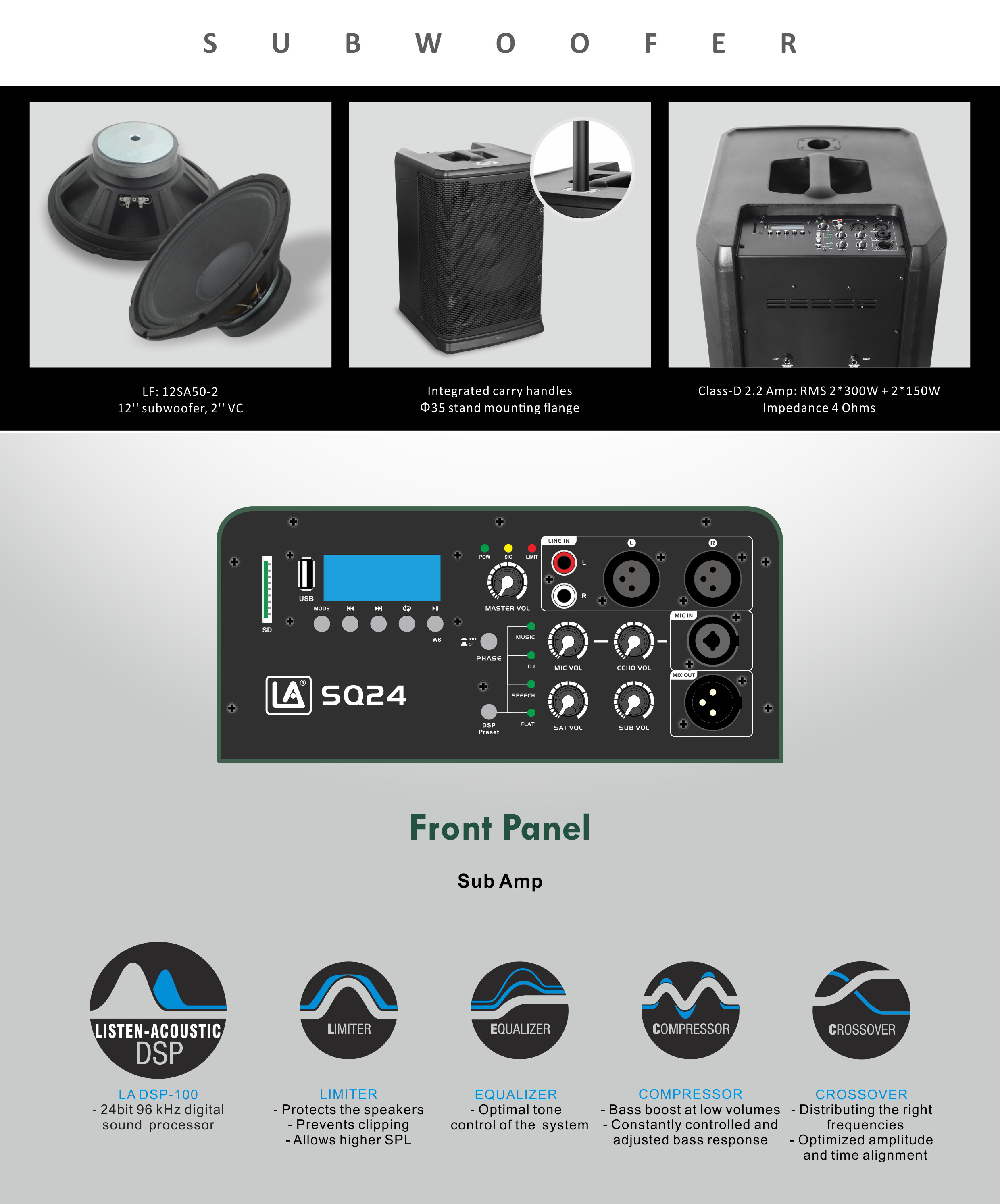

| Transducer LF | 12"subwoofer, 2"VC | 15"subwoofer, 2"VC |
| Amplifier | 2.2 Class-D Amplifier | 2.2 Class-D Amplifier |
| Power Output (RMS) | 300W+ 300W+ 150W+150W | 450W+450W+250W+250W |

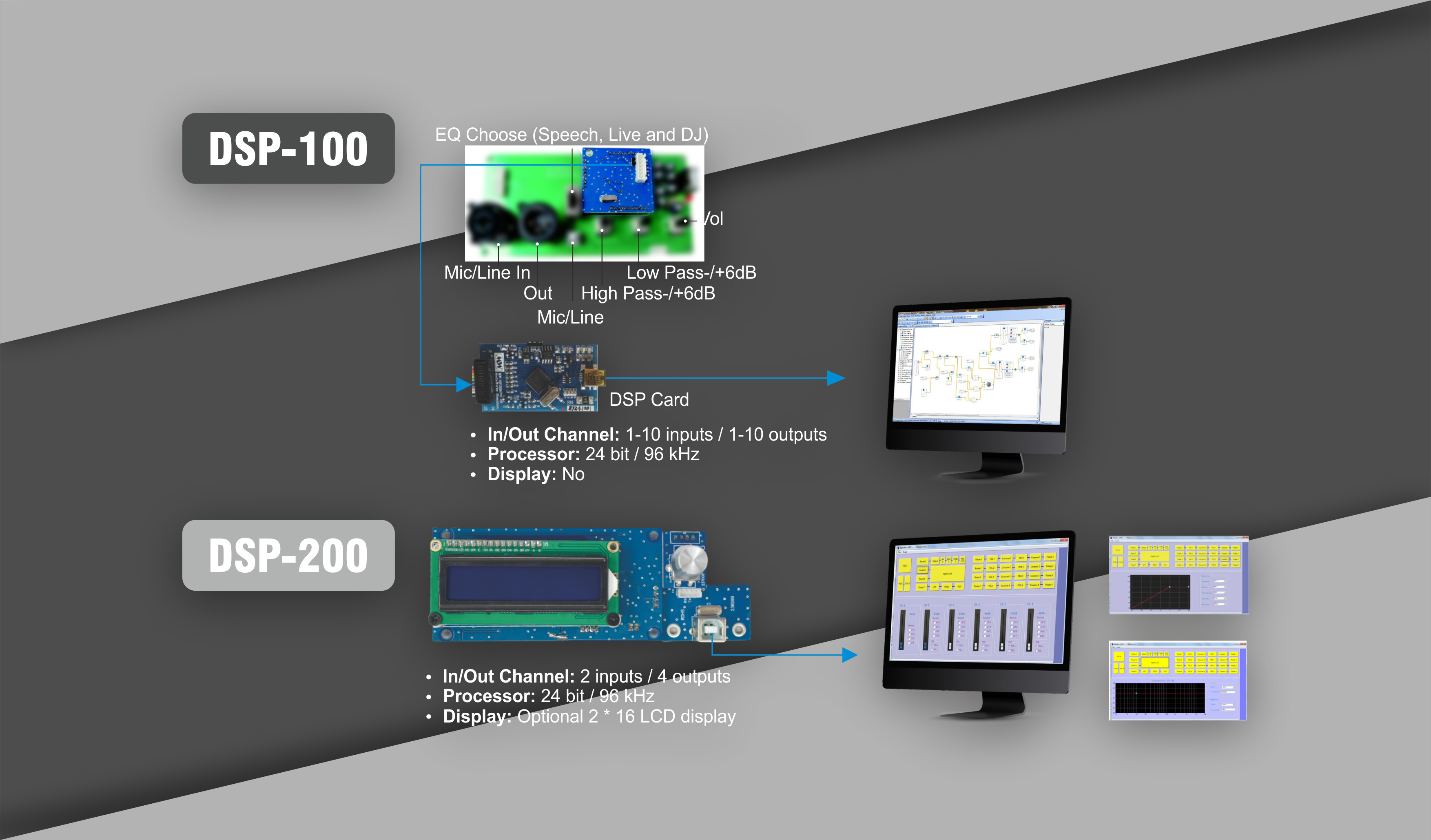

| DSP Module | LA DSP-100,96 kHz,24-bit DSP processor with preset modes: Music, DJ, Speech, Flat | LA DSP-100.96 kHz.24-bit DSP processor with preset modes: Flat, DJ, Live |
| Protection | Short circuit overheating, over-current | |
| Audio Input / Output | Left / Right XLR input, 1 * Combo XLR/Jackinput,1*RCA input, 1*XLR output,2*6.35mm output, 1* speakon output | Left / Right XLR input, 2 * Combo XLR/Jackinput,1*RCA input, 1*XLR output,2*6.35mm output, 1* speakon output |
| SUB cabinet | Plastic / Regular painting / Metal grille | Plastic / Regular painting / Metal grille |
| Power Supply | 100-260V 60/50Hz | 100-260V 60/50Hz |
| Satellite | PP cabient / Metal grille | PP cabient / Metal grille |
| Power input / Output | AC input | |
| Function | MP3 player / BT 5.0 / TWS / ECHO | MP3 player / BT 5.0 / TWS / ECHO |
Send Message
Related Products
Model NO. SQ24 2.1 PRO
Model NO. SQ24 2.1
Model NO. SQ24 2.2 PRO
Model NO. SQ24 1.1 PRO
Model NO. SQ24 1.1

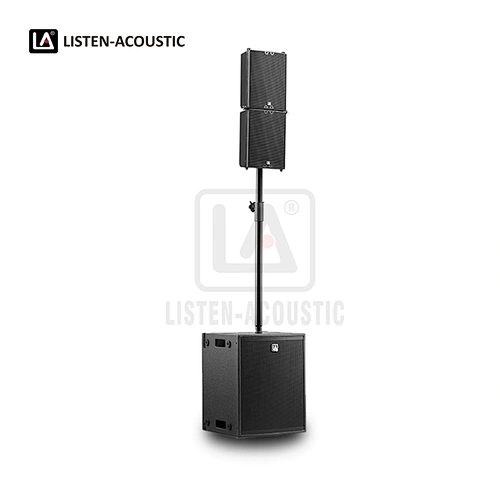

Model NO. S1-Mini

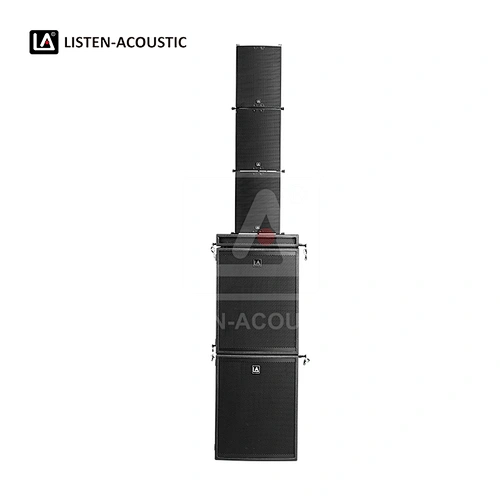

Model NO. S1-Stand

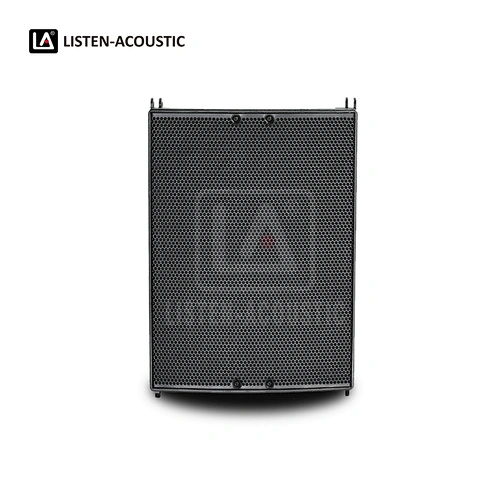

Model NO. S1-M/S1-MD
