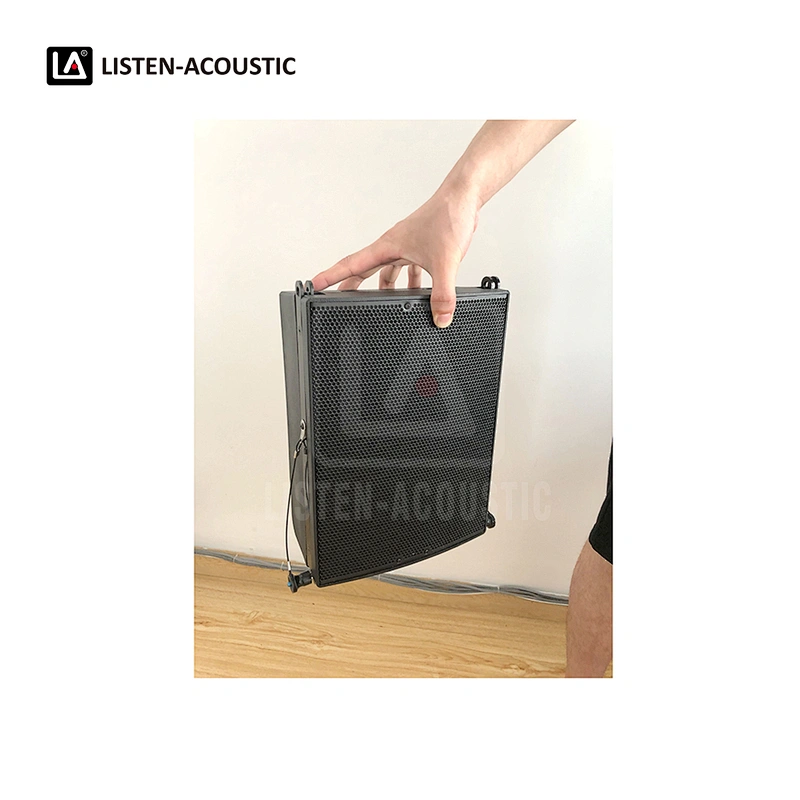

| Model No. | S1-M | S1-MD |
| Type | 2-way passave mid-high line-array | 2-way active mid-high line-array |
| Frequency Response (-6dB) | 120 Hz - 20 kHz | |
| Max. SPL (1m, free space) | 125 dB | |
| Power Output (RMS) | 200W | |
| Impedance | 4Ohms | |

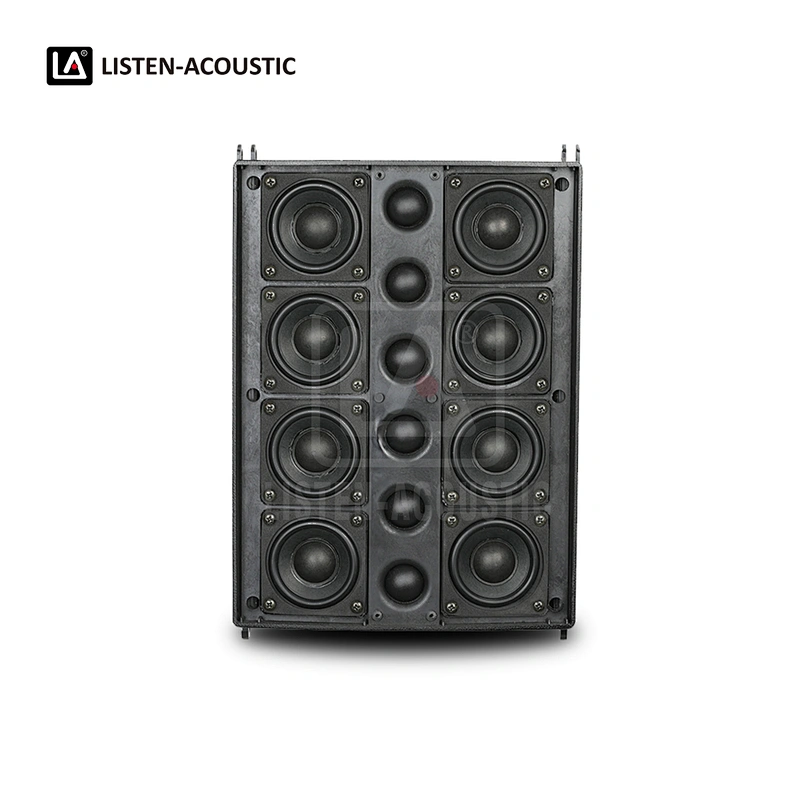

| Transducer HF | 6 * 1"dome tweeter | |
| Transducer MF | 8 * 2.75", neodymium magnet, 1"voice coil | |
| Dispersion (H * V) | 120° * 16° | |
| Amplifier | / | Class-D amplifier |
| DSP Module | / | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, Live |
| Protection | / | Short circuit overheating,over-current |

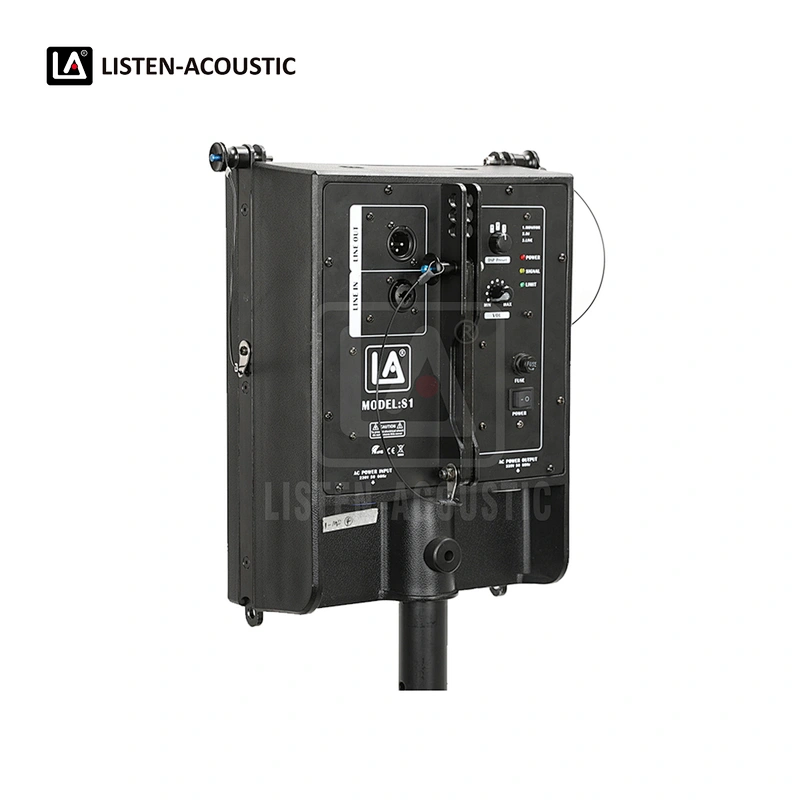

| Controls | / | Power On / Off switch, main level, DSP modes switch |
| Indicators | / | Power, signal, limit |
| Audio Input / Output | Speakon | 1 * XLR input 1 * Combo XLR/Jack output |
| Power Input / Output | Speakon | Powercon |
| Power Supply | / | 100~250V 50/60Hz |
| Enclosure | ABS/PP Plastic | |
| Grille | 1.0mm thickness metal grille with acoustic fabric | |
