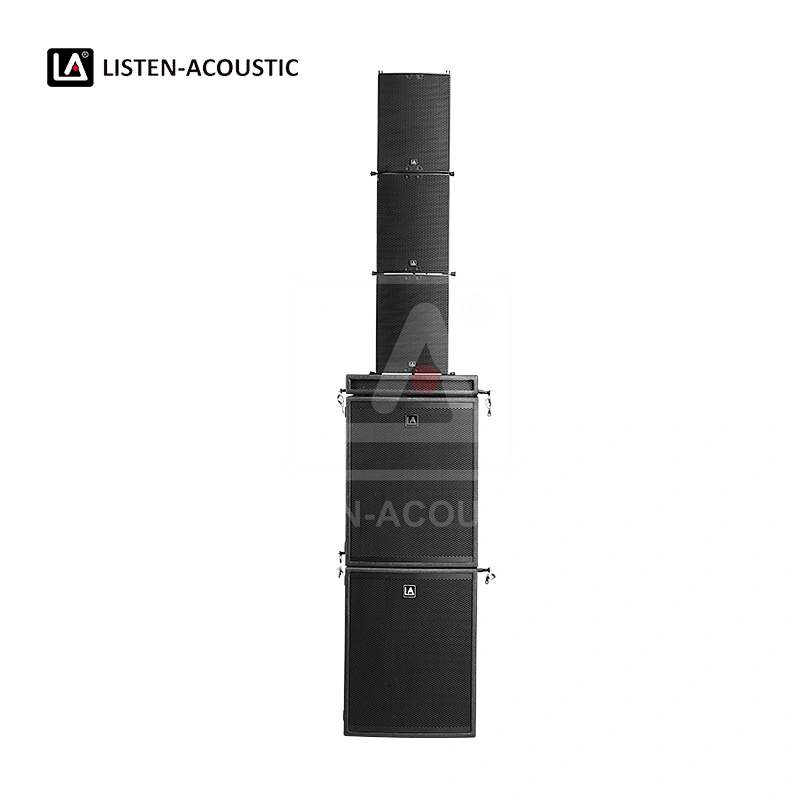

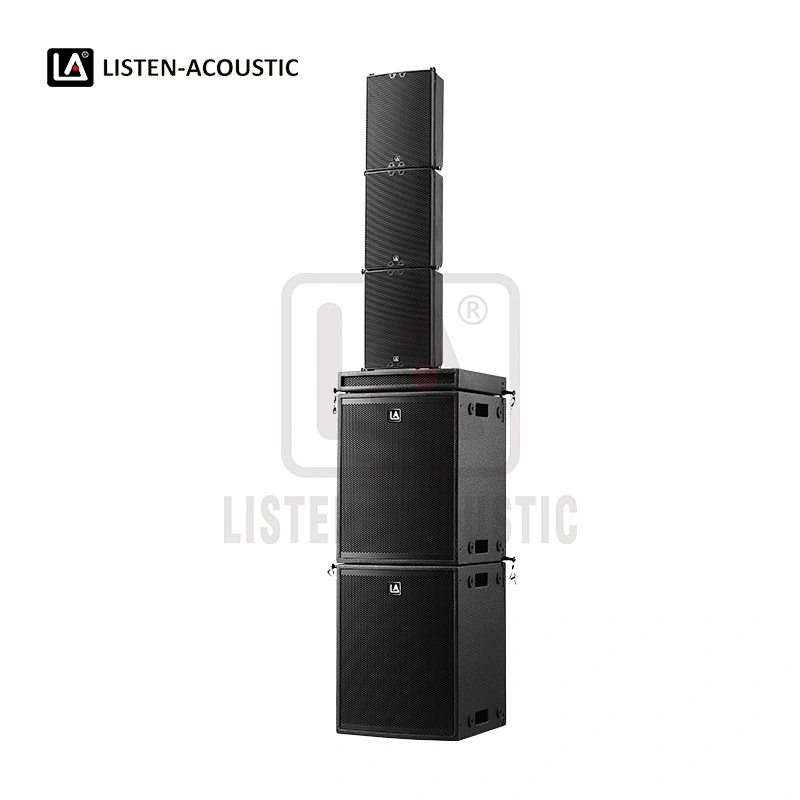

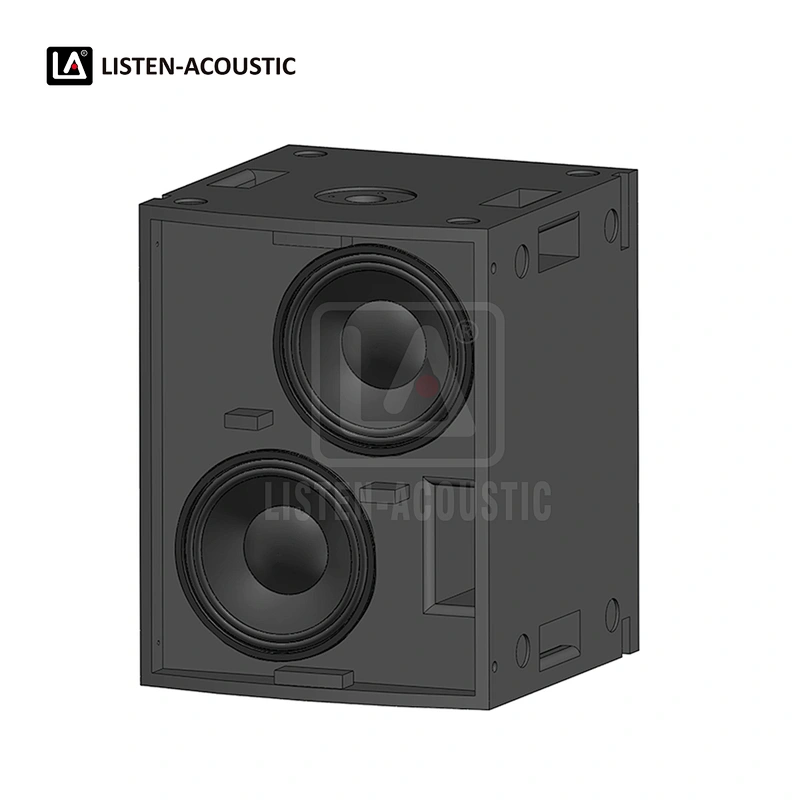

S1-Stand Ultra Compact Line Array Speakers Series

Model NO.
S1-Stand
Delivery:
FOB
Minimum order quantity:
100 sets
Supply Ability:
15,000 sets / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
3pcs active full range speaker+1pc Master Sub +1pc Slave Sub
Quantity:



Model No. S1-MDS1-210DS1-210DM

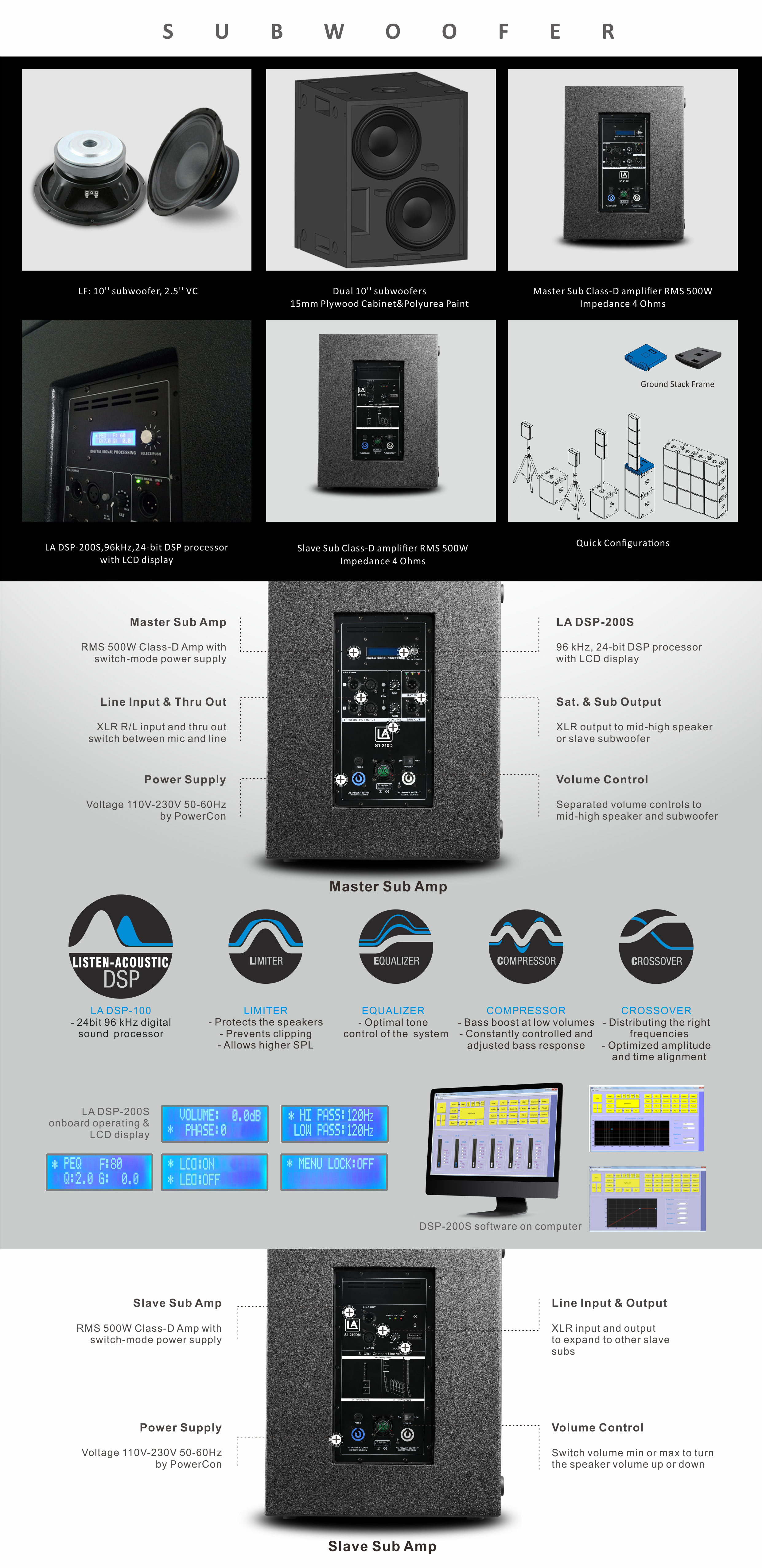

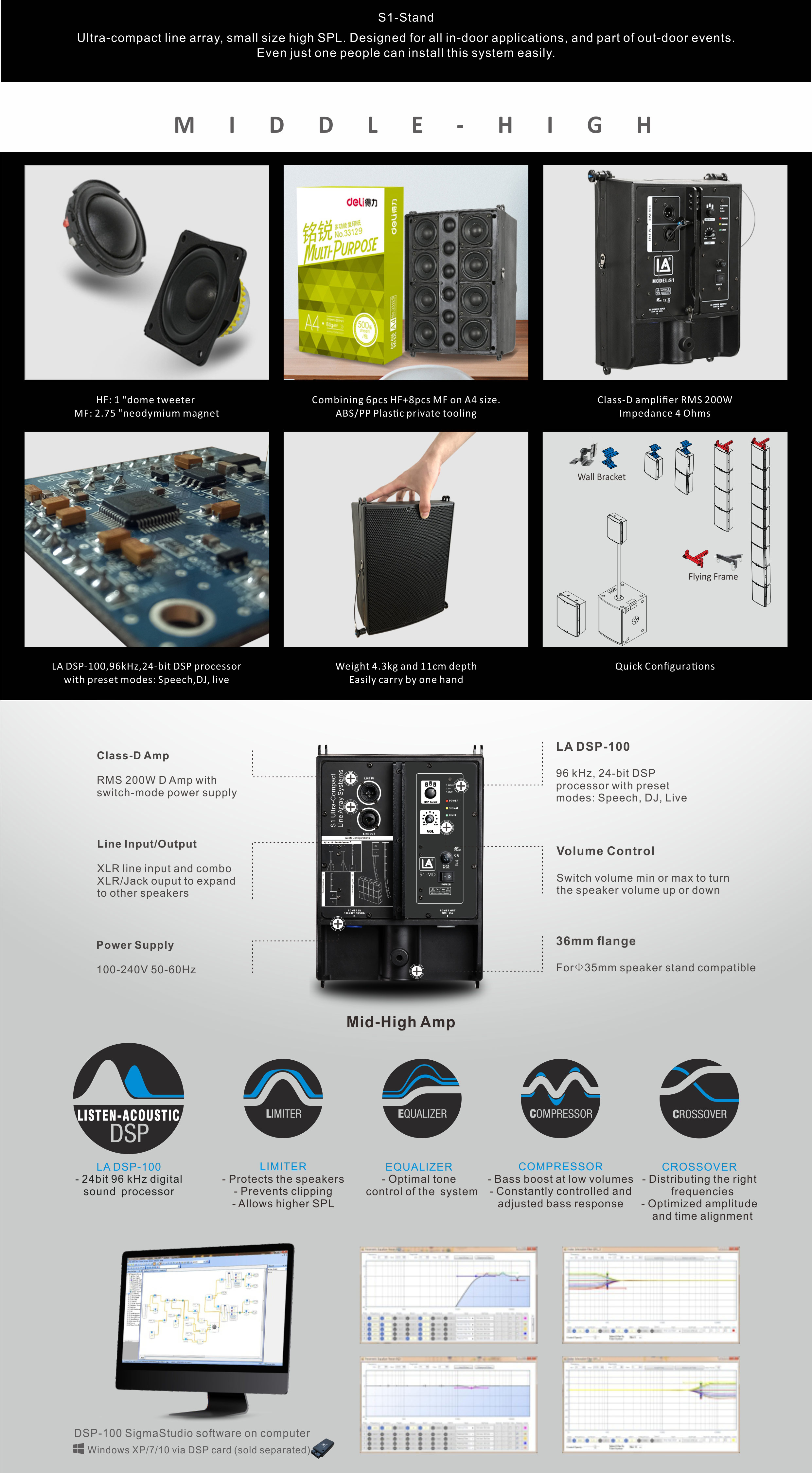

Type2-way active mid-high line array speakersDual 10'' active bass reflex, Master SubDual 10'' active bass reflex, Slave Sub
Frequency Response (-6dB)120 Hz - 20 kHz45 Hz - 120 Hz
Max. SPL (1m, free space)125 dB117 dB
Power Output (RMS)200W500W
Impedance4Ohms8 Ohms
Transducer HF6 * 1"dome tweeter/
Transducer MF8 * 2.75", neodymium magnet, 1"voice coil/
Transducer LF/2 * 10"subwoofer, 2.5"voice coil
Dispersion (H * V)120° * 16°//
AmplifierClass-D amplifier
DSP ModuleLA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, LiveLA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display and USB for adjustment in computerNo DSP
ProtectionShort circuit overheating,over-current

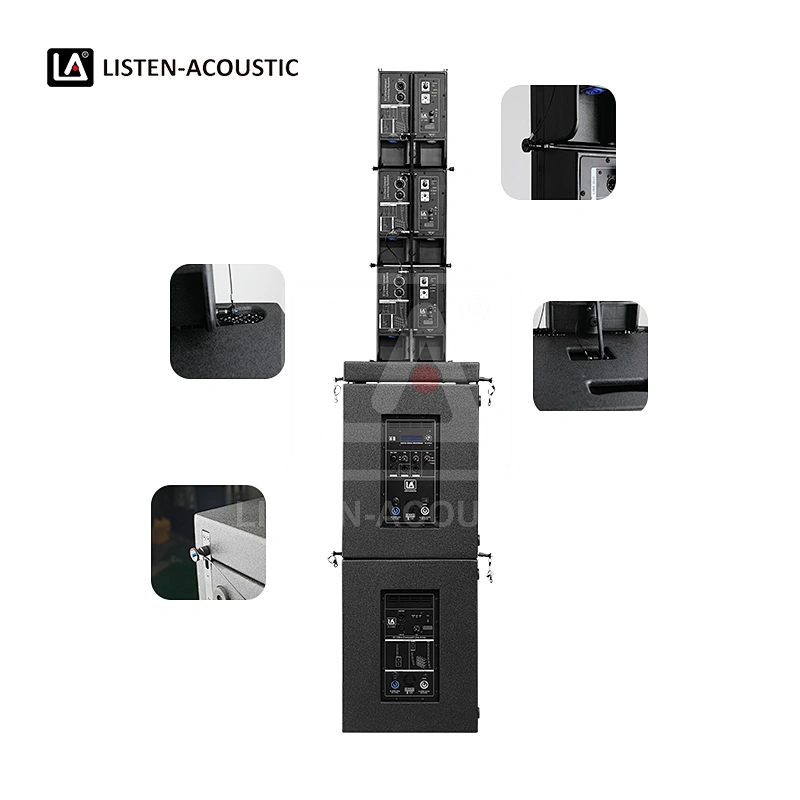

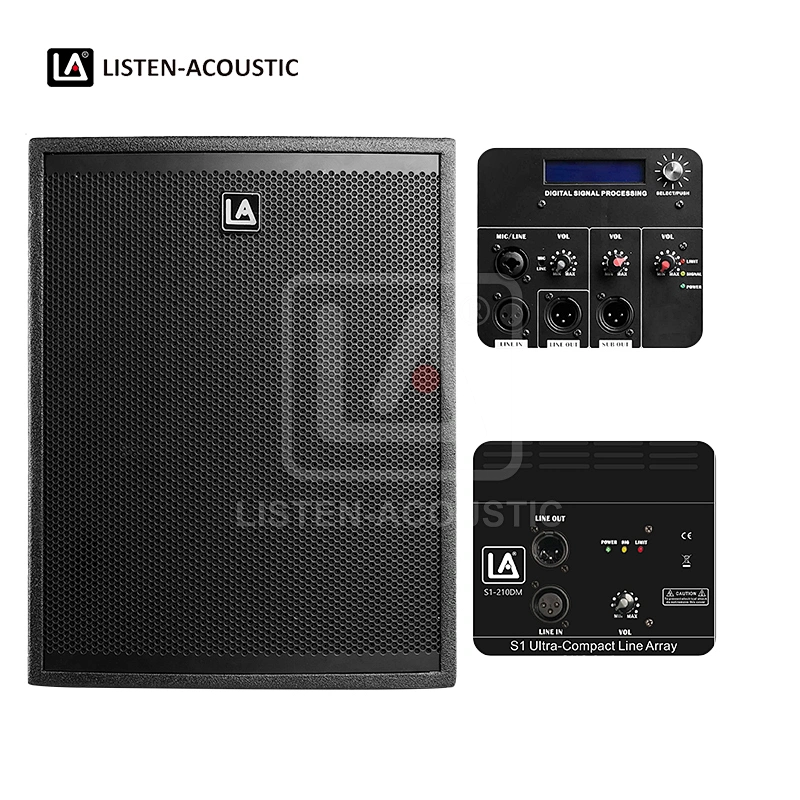

ControlsPower On / Off switch, main level, DSP modes switchPower On / Off switch, main level, mic/line levelPower On / Off switch, main level
IndicatorsPower, signal, limit
Audio Input / Output1 * XLR input
1 * Combo XLR/Jack output
1 * Combo XLR/Jack input
1 * XLR input
1 * XLR output
1 * XLR input
1 * XLR output
Power Input / OutputPowercon
Power Supply100~250V 50/60Hz110~250V 50/60HZ
EnclosureABS/PP Plastic15mm plywood with polyurea painting
Grille1.0mm thickness metal grille with acoustic fabric1.2mm thickness metal grille with acoustic fabric
