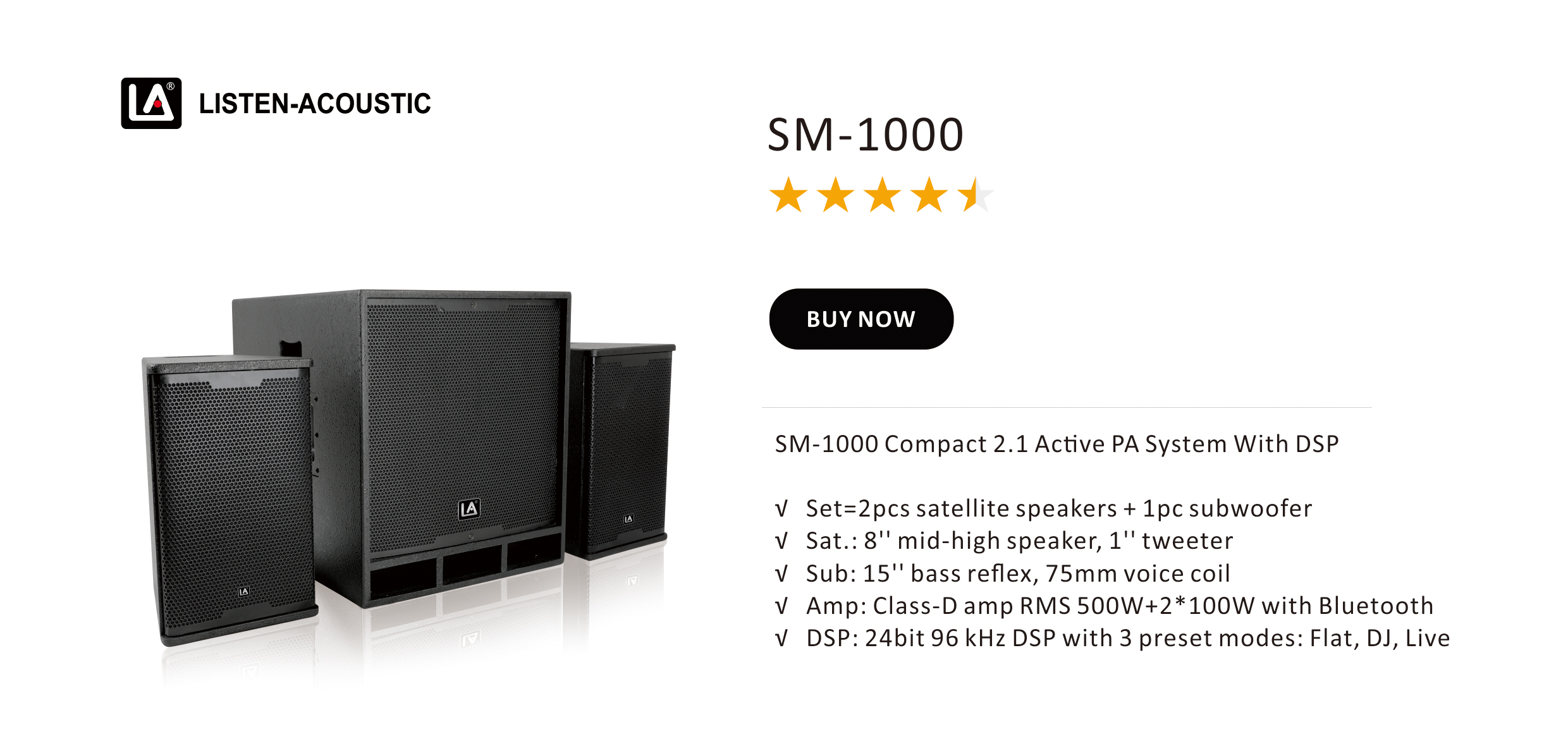

| Model No. | SM-900 | SM-1000 | SM-1100 |

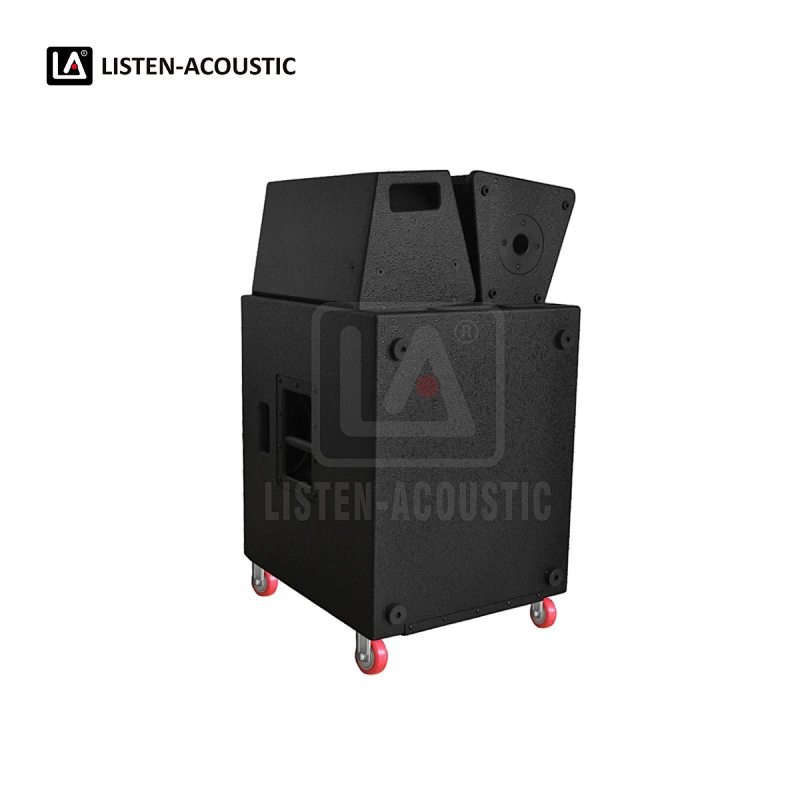

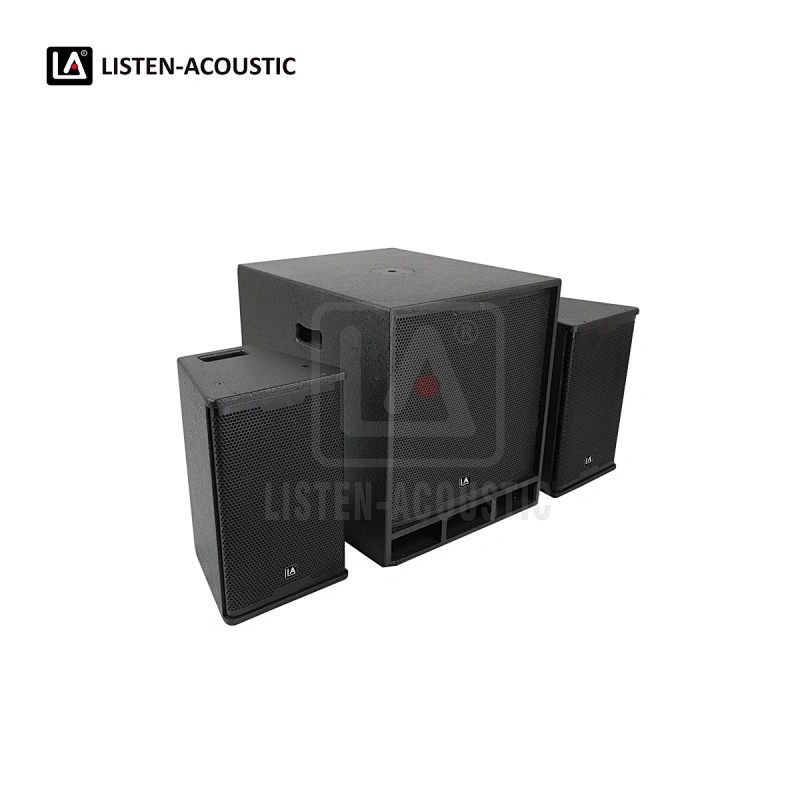

| System | Compact 2.1 PA System | Compact 2.1 PA System | Compact 2.1 PA System |
| Frequency Response (-6dB) | 65 Hz - 18 kHz | 55 Hz - 18 kHz | 50 Hz - 20 kHz |
| Max. SPL (1m, free space) | 117 dB | 119 dB | 119 dB |
| Impedance | 4Ohms | ||

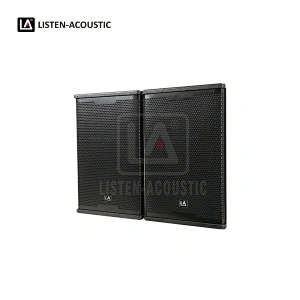

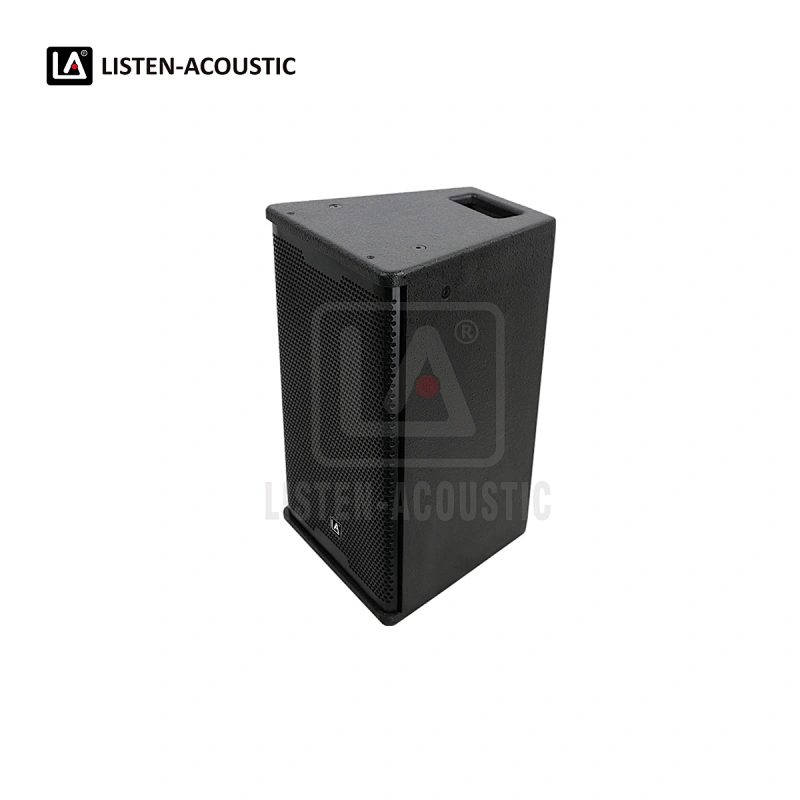

| Satellites | 2 * 6.5'' full range speaker | 2 * 8'' full range speaker | 2 * 10'' full range speaker |
| Transducer MF | 1 * 6.5"steel frame woofer | 1 * 8"steel frame woofer | 1 * 10"steel frame woofer |
| Transducer HF | 1 * 1"Ti. tweeter | 1 * 1"Ti. tweeter | 1 * 1.34"Ti. tweeter |

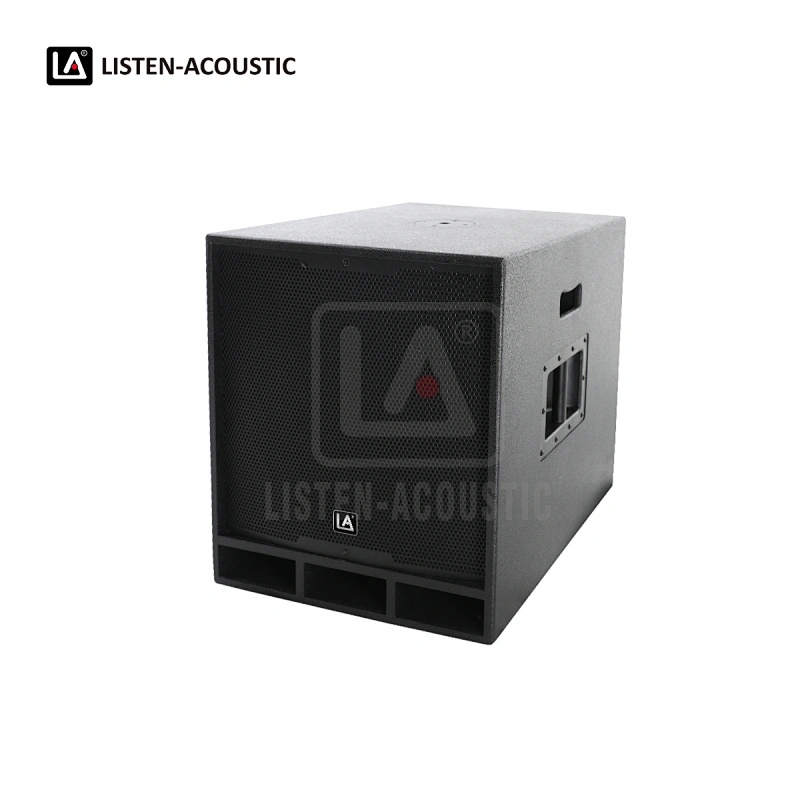

| Subwoofer | 12"bass reflex | 15"bass reflex 18"bass | 18"bass reflex |
| Transducer LF | 1 * 12"subwoofer, 2.5'' VC | 1 * 15"subwoofer, 3'' VC | 1 * 18"subwoofer, 3'' VC |
| Enclosure | MDF with regular painting | ||
| Grille | Metal grille without acoustic fabric | ||
| Amplifier | Class-D amplifier | ||
| Amplifier RMS Output Power | 300W(Sub)+60W(Sat)*2 | 500W(Sub)+100W(Sat)*2 | 600W(Sub)+150W(Sat)*2 |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, Live | ||
| Protection | Short circuit overheating, over-current | ||
| Controls | Power On / Off switch, satellite level, subwoofer level, Bluetooth On / Off switch, DSP modes switch, Mono /Stereo switch, sensitivity 0dB / +5dB switch | ||
| Indicators | Power, signal, limit, bluetooth, DSP monitor / DJ / Live indicators | ||

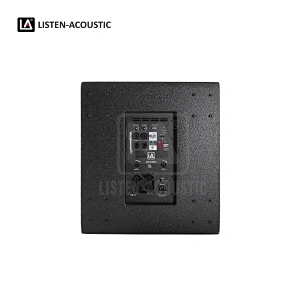

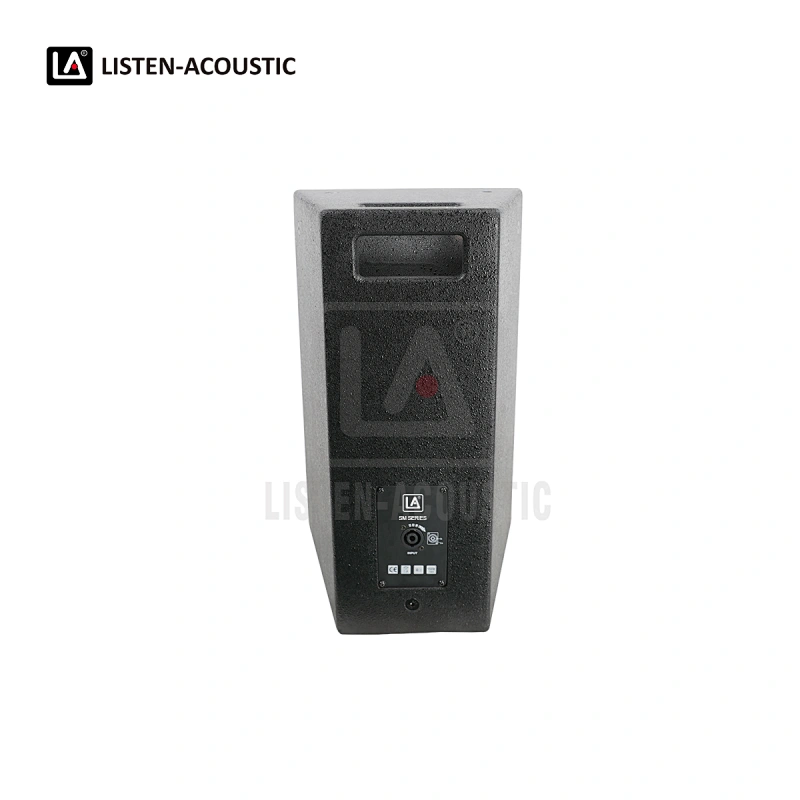

| Audio Input / Output | Left / Right Combo XLR/Jack input, 1 * Balanced RCA input, 2 * XLR output, Left / Right Speakon output | ||
| Power Input / Output | AC input | ||
| Power Supply | 100~130V 50/60HZ or 210~250V 50/60HZ | ||
